1Open the hood and find the battery
The 12V battery is under the hood. Remove any plastic cover over it.
FREE REPAIR GUIDERam 1500
Ram 1500
Battery replacement.
A little guidance for your next fix. Follow these steps to battery replacement for your Ram 1500.
DIFFICULTYEasy
ESTIMATED TIME~30 min
TOOLS10mm/13mm socket, extension
POTENTIAL SAVINGS$60–120Labour estimate · varies
Know what you’re replacing.
A slow crank, clicking, or electrical glitches on start-up usually mean your Ram 1500 needs a new battery. Most of these swaps take about 30 minutes. If your vehicle has Auto Start-Stop, it needs an AGM battery. On eTorque (mild-hybrid) trucks there is also a separate 48V battery pack behind the rear seat — never disconnect or service it. This guide covers the main 12V battery under the hood.
What you’ll need.
Battery for 2019–2024 Ram 1500Confirm group size and AGM vs flooded for your engine ~$160–300
View on Amazon →
Battery terminal brushCleans corrosion · ~$6
View on Amazon →Socket set with extensionReaches hold-down bolts · ~$25
View on Amazon →As an Amazon Associate, RepairAI may earn from qualifying purchases. Confirm fitment for your exact year, engine and trim before buying.
A little preparation first.
- Match the group size and type on your old battery's label, or look it up by VIN at a parts store.
- Engine off, key or smart key away from the vehicle, glasses and gloves on.
- Note radio presets; some settings may reset.
One step at a time.

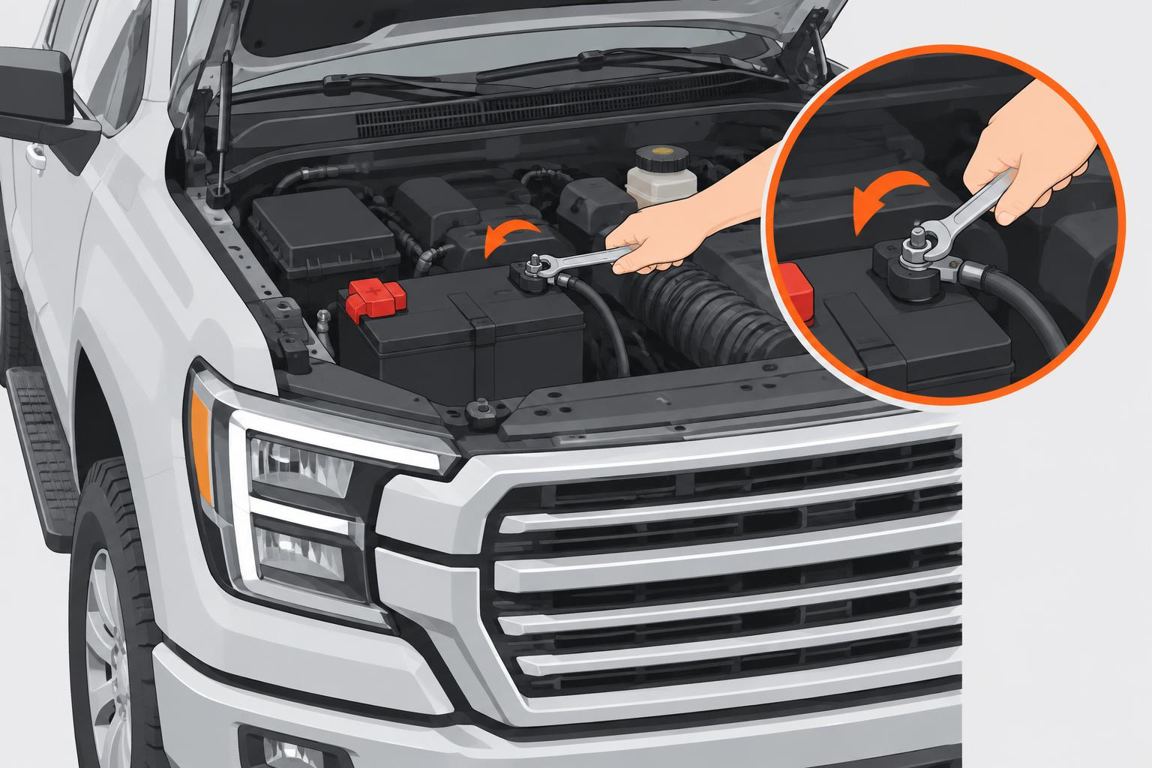

2Disconnect the negative (–) terminal first
Loosen the black terminal and move the cable away from the post. If there's a sensor on the negative clamp, disconnect at the clamp, not the sensor plug.

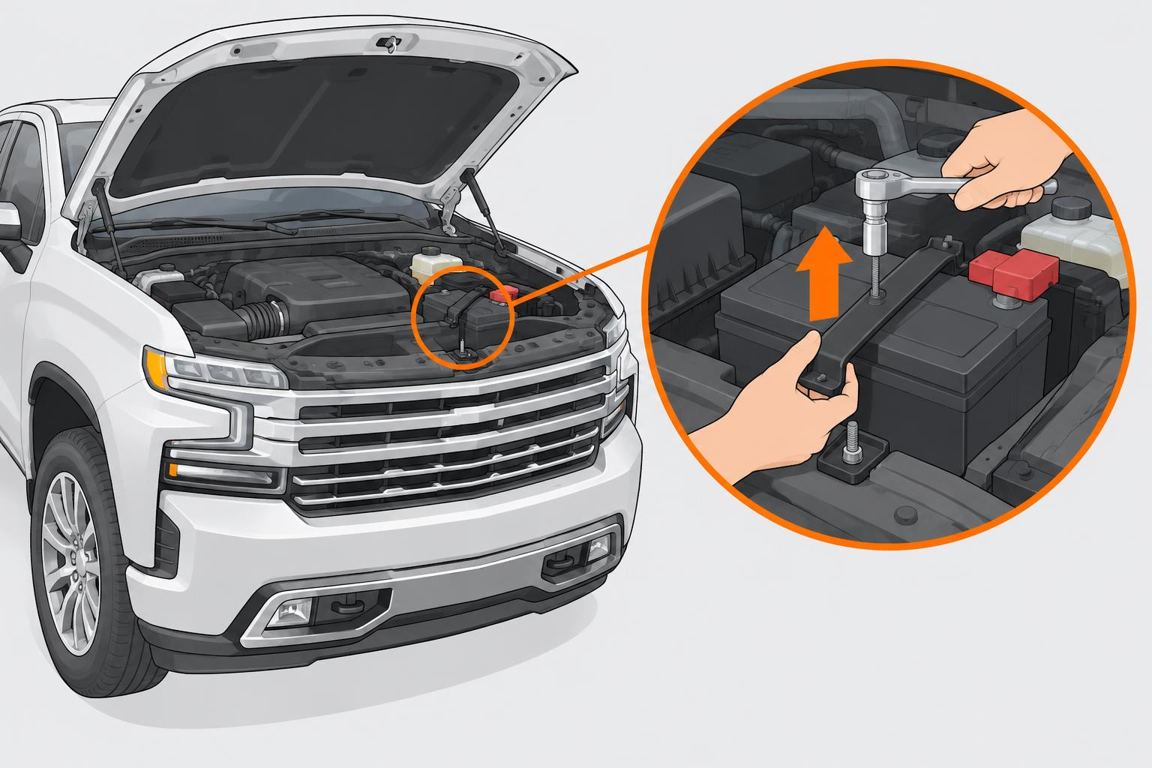

3Disconnect positive and remove the hold-down
Remove the red terminal, then unbolt the hold-down with a socket and extension.

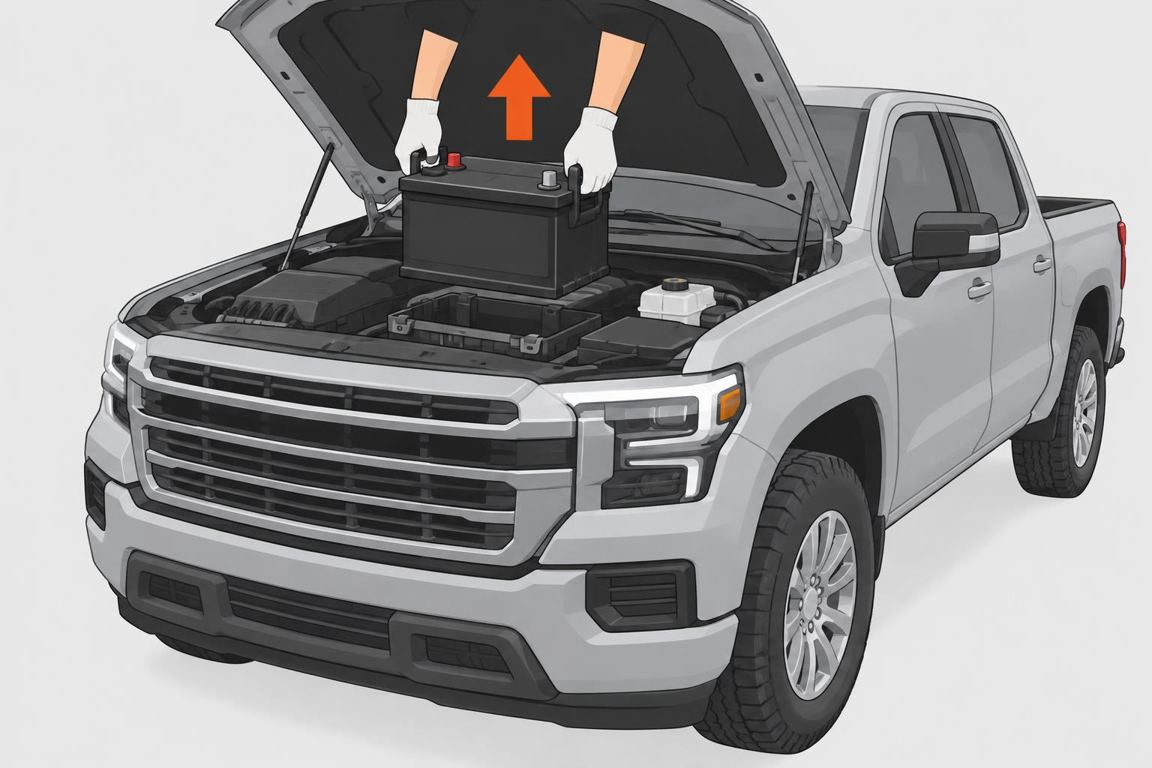

4Lift out the old battery
Lift straight up with both hands — expect 40–55 lb — and keep it upright.
5Install the new battery
Seat it the same way, refit the hold-down, connect positive first, negative last, and tighten both clamps.
Log in
Troubleshooting
Warning messages after the swapMany Ford and Ram/Jeep vehicles use a battery monitoring system that relearns after the vehicle sits locked for several hours; a shop scan tool can reset it right away.Auto Start-Stop doesn't workNormal until the system relearns, or the battery isn't the right AGM type.Still slow to crankHave the alternator and cables checked — record the start-up sound for a diagnosis.
FAQ
Which battery does my Ram 1500 take?It depends on engine and options. Check the old label or a parts-store VIN lookup.What do I do with the old battery?Return it to the store for the $10–20 core refund.
General guidance only. Procedures vary by year, engine and trim; if unsure, consult a qualified mechanic or your owner’s manual.
