1Find the battery
Open the hood; the battery is in the front driver-side corner of the engine bay.
FREE REPAIR GUIDEToyota RAV4
Toyota RAV4
Battery replacement.
A little guidance for your next fix. Follow these steps to battery replacement for your Toyota RAV4.
DIFFICULTYEasy
ESTIMATED TIME~20 min
TOOLS10mm socket, extension
POTENTIAL SAVINGS$50–100Labour estimate · varies
Know what you’re replacing.
If your RAV4 cranks slowly, the dash flickers on start-up, or the battery is over 4 years old, it's time for a new one. On gas RAV4s the 12V battery is under the hood on the driver's side. This guide covers gas models — RAV4 Hybrid and Prime 12V batteries are in a different place; check your owner's manual.
What you’ll need.
Battery for 2019–2024 RAV4 (gas)Confirm group size for your year and engine · ~$130–230
View on Amazon →
Battery terminal brushCleans corrosion · ~$6
View on Amazon →10mm socket with extensionReaches the hold-down bolts · ~$15
View on Amazon →As an Amazon Associate, RepairAI may earn from qualifying purchases. Confirm fitment for your exact year, engine and trim before buying.
A little preparation first.
- Match the group size and type on your old battery's label.
- Write down radio presets; you may need to re-learn power windows.
- Engine off, smart key out of range, glasses and gloves on.
One step at a time.

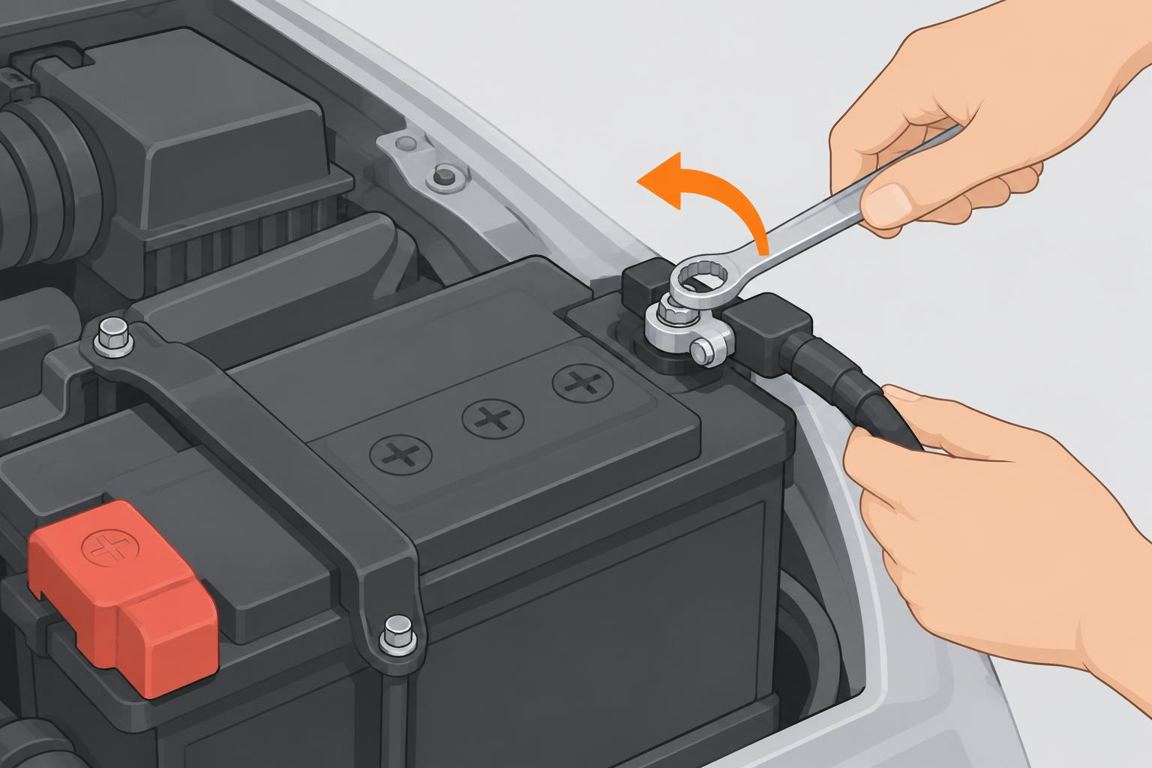

2Disconnect the negative (–) terminal
Loosen the black terminal and move the cable away from the post.

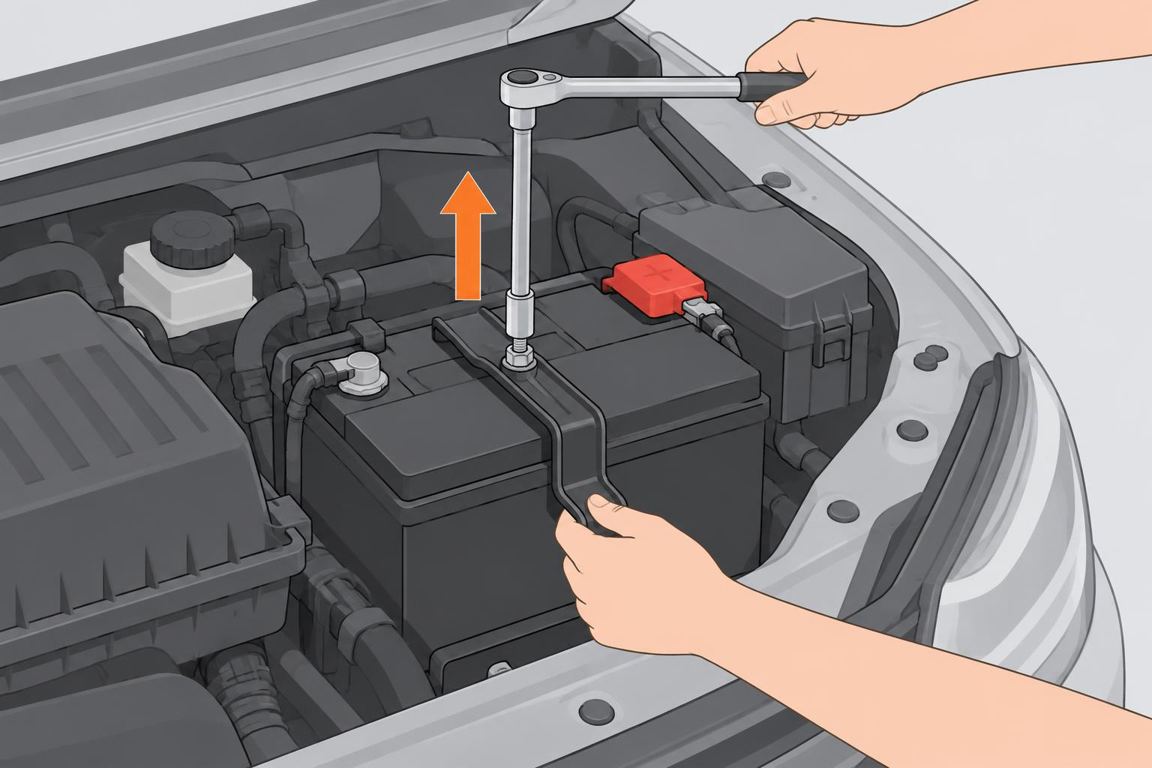

3Disconnect positive and remove the hold-down
Remove the red terminal, then unbolt the hold-down clamp using a 10mm socket with an extension.

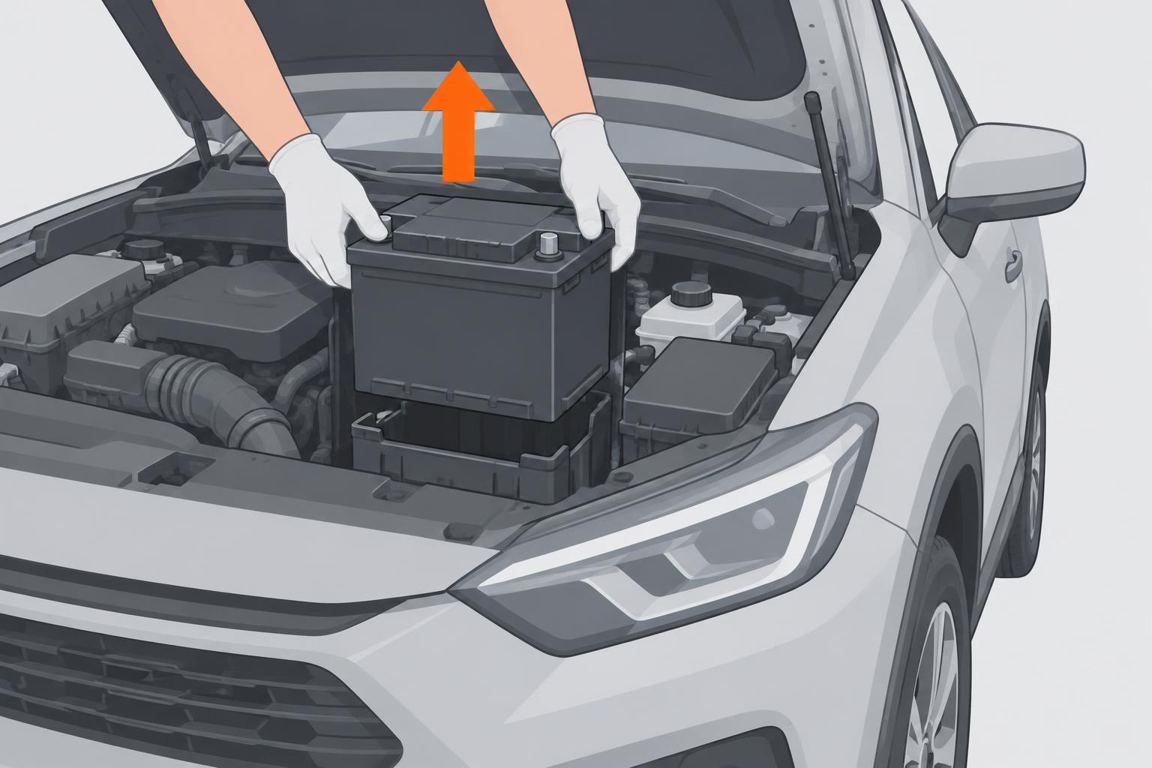

4Lift out the old battery
Lift straight up with both hands and keep it upright.
5Install the new battery
Set it in the tray, refit the hold-down, connect positive first, negative last, and tighten both clamps.
Log in
Troubleshooting
Power windows don't auto up/downRun each window fully down and hold, then fully up and hold for a couple of seconds.Warning lights after the swapDrive for a few minutes; most clear on their own. If not, run a diagnosis.Still won't startCheck the clamps are tight. If it clicks, record the sound for a diagnosis.
FAQ
How long does a RAV4 battery last?Around 3–5 years, less in hot climates.Is the Hybrid the same?No — the Hybrid and Prime 12V batteries sit elsewhere and use different parts.
General guidance only. Procedures vary by year, engine and trim; if unsure, consult a qualified mechanic or your owner’s manual.
